Ultra-Miniaturized Micro-Nano Fog

  • 1
  • 2
  • 3

Brand Name : Firepower

Model Number : MFOG-1703

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T,L/C,Western Union

Supply Ability : 100

Delivery Time : 10 days for sample

Packaging Details : Sponge&Box

Certification : CE

Price : 1317 USD

Measuring Range : ±300°/S

Scale Factor : 3600lsb/°/S

Scale Factor Nolinearity : ≤500ppm

Zero-Bias Stability : ≤1°/H, 10s, 1σ

Power Supply : 5±0.15V

Power Consumption : ≤1.5W

Contact Now

Product Description

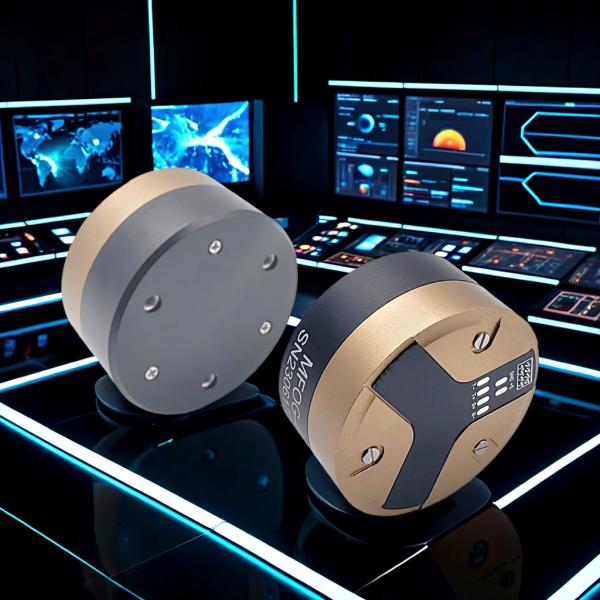

MFOG-1703 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions. This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.

Technical Parameters

Serial

number

Project

Performance

indicators

1

Range (°/s)

±150

2

Scale factor (mV/ o /s)

12±1.2

3

Zero-bias stability (10s, 1σ, °/h)

≤1

4

Zero-bias repeatability (1σ, °/h)

≤1

5

Angular random walk (°/h 1/2 )

≤0.02

6

Zero-bias temperature sensitivity (uV/° C)

≤1

7

Scale Factor Temperature Sensitivity

(ppm/° C)

≤300

8

3dB Bandwidth (Hz)

≥450




FAQ
Q: What is your lead time?
A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time based on your order quantities.

Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end:
1) We produce product according agreed technical requirements strictly;
2) We do full tests according to test methology;
3) We have a professional QA/QC team to ensure the quality.

Q: Do you accept OEM or ODM order?
A: Yes, we are professional manufacturer and we are capable for providing both OEM and ODM service by customer's needs.

Q: What are the terms of delivery?
A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you.

Q: What is the payment way?
A: TT, L/C, Pay later, West Union, Online Bank Payment.

Q: What is warranty?
A: Standardly 12 months and negotiable for longer warranty.

Q: What is the packing quality?
A: For sample order, we use carton box with sponge, and batch order, we use wooden box.

Q: What is final price?
A: For standard product, price is as in the price table; For customized product, price by checking with sales, so as to different quantity needs.

Q: How to choose product?
A: We are professional manufacturer, we could provide standard product on shelf, or products by customer's specific requirements:
1) Choose from MadeinChnia platform or website;
2) Customer raise some certain different technical requirements based on standard products;
3) Customer provide specific and comprehensive technical requirements to sales to evaluate;
4) Customer explain application to sales to provide suitable products.
